Extended Functions：
1- Hermetic scroll compressor 2- HFC401A 3- Cooling 3- Heating 4- Part of heat recovery 4- Total heat recoveryFrame Structure Description：
1. The overall frame and bottom plate of the unit are made of galvanized steel plate with polyester spraying treatment on the outer surface, so that the whole unit should not be rusted.
2. The unit structure is convenient, compact and occupies a small space. The compressor, evaporator and condenser are all built into the sheet metal frame, and the unit is waterproof and dustproof.
Compressor Description：
1. High efficient scroll compressor with low noise;Flexible compressor, liquid slugging and wear resistant.
2. Twin compressor, multi-circuit for better backing up, lower starting current.
Evaporator Description：
AISI316 stainless steel brazed plate heat exchanger, efficient heat exchange. The surface is covered with closed-cell neoprene insulation material to prevent condensation on the surface of the plate heat exchanger; and the plate heat exchanger is built in to prevent the plate heat exchanger from being frozen under harsh conditions.
Condenser：
AISI316 stainless steel brazed plate heat exchanger, efficient heat exchange. The surface is covered with closed-cell neoprene insulation material to prevent condensation on the surface of the plate heat exchanger.
Control Cabinet：
1. The unit start-up and microcomputer control part are integrated in the same control cabinet and located at the front of the unit, which is convenient for the on-site operators to operate in the machine room and between the units. All electrical parts maintenance can be carried out at the front of the unit.
2. The electrical control box is made of high-quality steel plate, and the outer surface has been treated with galvanized powder, which makes it weather resistant and can effectively protect the electrical components of the unit.
3. For the safety of the operator, once the host is powered on, the operator will not be able to open the isolation board of the control and electrical components to ensure the safety of the operator.
Control System：
● Dedicated W3000 microprocessor is inserted with CLIMAVENETA control algorithm to make sure energy saving and reliability.
● FIFO compressor running time balance function extends unit’s working life.
● Auto compressor power input control following with load change for energy saving.
● Environment adaptation by data regulation and setting.
● Modulating measurement is used for temperature pressure protection. It can increase reliability and predict and prevent fault occurs.
● Expansion kit for remote control and group control.
? ? ? ? ?
Certification and Honor：
Electric Control：
：
：
：
：
：
| Cooling Capacity | 50～430kW |
| Heating Capacity | 50～440kW |
| Compressor type | scroll type |
| Number of compressors | 2-4 |
| Refrigeration circuit | parallel |
| Refrigerant | R410A |
| Power Input | 380V/3Ph/50Hz |
Changji Yanyue Bay
Cooling Capacity：11111.5kW
Heating Capacity：14642.7kW
System：
Qianshan Old Village
Cooling Capacity：22950kW
Heating Capacity：7080kW
System：

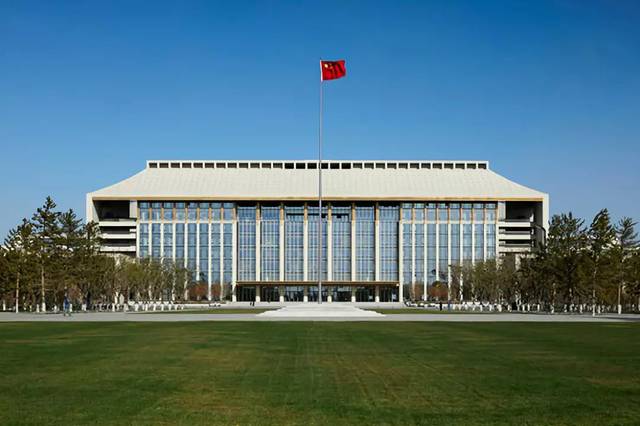

Beijing City Sub-center Administrative Office Area 6# Energy Station
Cooling Capacity：9200kW
Heating Capacity：9500kW
System：

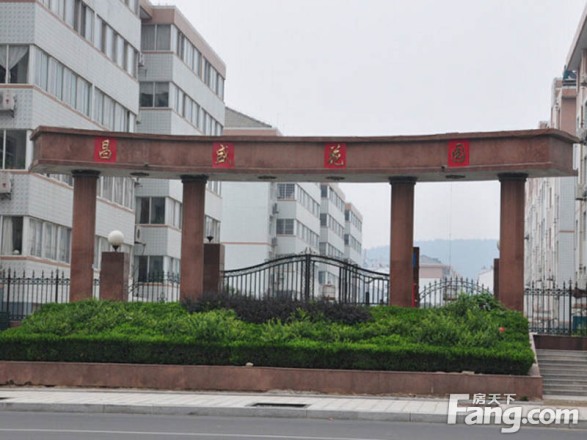

Changsheng Garden, Changle County, Weifang City, Shandong Province
Cooling Capacity：4000kW
Heating Capacity：4000kW
System：

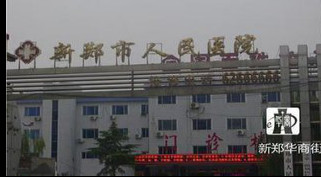

Xinzheng First People's Hospital
Cooling Capacity：2592kW
Heating Capacity：2698kW
System：
Tel:400-880-7575
Products
PRODUCT
- Features
- Technical Data
- Projects
- Download
- Other
Extended Functions：
1- Hermetic scroll compressor 2- HFC401A 3- Cooling 3- Heating 4- Part of heat recovery 4- Total heat recoveryFrame Structure Description：
1. The overall frame and bottom plate of the unit are made of galvanized steel plate with polyester spraying treatment on the outer surface, so that the whole unit should not be rusted.
2. The unit structure is convenient, compact and occupies a small space. The compressor, evaporator and condenser are all built into the sheet metal frame, and the unit is waterproof and dustproof.
Compressor Description：
1. High efficient scroll compressor with low noise;Flexible compressor, liquid slugging and wear resistant.
2. Twin compressor, multi-circuit for better backing up, lower starting current.
Evaporator Description：
AISI316 stainless steel brazed plate heat exchanger, efficient heat exchange. The surface is covered with closed-cell neoprene insulation material to prevent condensation on the surface of the plate heat exchanger; and the plate heat exchanger is built in to prevent the plate heat exchanger from being frozen under harsh conditions.
Condenser：
AISI316 stainless steel brazed plate heat exchanger, efficient heat exchange. The surface is covered with closed-cell neoprene insulation material to prevent condensation on the surface of the plate heat exchanger.
Control Cabinet：
1. The unit start-up and microcomputer control part are integrated in the same control cabinet and located at the front of the unit, which is convenient for the on-site operators to operate in the machine room and between the units. All electrical parts maintenance can be carried out at the front of the unit.
2. The electrical control box is made of high-quality steel plate, and the outer surface has been treated with galvanized powder, which makes it weather resistant and can effectively protect the electrical components of the unit.
3. For the safety of the operator, once the host is powered on, the operator will not be able to open the isolation board of the control and electrical components to ensure the safety of the operator.
Control System：
● Dedicated W3000 microprocessor is inserted with CLIMAVENETA control algorithm to make sure energy saving and reliability.
● FIFO compressor running time balance function extends unit’s working life.
● Auto compressor power input control following with load change for energy saving.
● Environment adaptation by data regulation and setting.
● Modulating measurement is used for temperature pressure protection. It can increase reliability and predict and prevent fault occurs.
● Expansion kit for remote control and group control.
? ? ? ? ?
Certification and Honor：
Electric Control：
：
：
：
：
：
| Cooling Capacity | 50～430kW |
| Heating Capacity | 50～440kW |
| Compressor type | scroll type |
| Number of compressors | 2-4 |
| Refrigeration circuit | parallel |
| Refrigerant | R410A |
| Power Input | 380V/3Ph/50Hz |
Changji Yanyue Bay
Area：Henan Period：2018 Building Function：Residential buildings System： Cooling Capacity：11111.5kW Heating Capacity：14642.7kWInstalled Units：
1 x PSRHH4802-Y-R 1 x PSRHH4502-Y-R 1 x PSRHH5103 1 x PSRHH5003.C-Y 1 x PSRHH9004.C-Y 3x PSRHH2401M
Qianshan Old Village
Area：Guangdong Period：2014 Building Function：Residential buildings System： Cooling Capacity：22950kW Heating Capacity：7080kWInstalled Units：
1 x FOCSWATER4102 3 x FOCSWATER6004C 3 x KMC800LH 3 x PSRHH6003C-R-Y
Zhengzhou Olympic Sports Center
Area：Henan? Period：2018 Building Function：Sport structures System： Cooling Capacity：15509kw Heating Capacity：Installed Units：
1 x KMC-1100LY-INV 1 x KMC1100LY 2 x KMC-1100LY-D 1 x CCS0500-INV 2 x CCS0500-INV 2 x FOCSWATER2501
Five Pine Ice Sports Center
Area：Beijing? Period：2019 Building Function：Sport structures System： Cooling Capacity：4600kW Heating Capacity：Installed Units：
3 x TECS-W4503L-E
?State Grid Chongqing Zhiwang Science and Technology Comprehensive Office Building?
Area：Chongqing? Period：2021 Building Function：Office Buildings System： Cooling Capacity：4800kW Heating Capacity：5000kWInstalled Units：
2 x ERACS3622E-N-D-B 1 x ERACS3602E-N-B 2 x ERACS3622E-N-B 52 x MFC 900 x FCU
